Summary

PAPAYA is a web-based asset browser designed to facilitate collaborative management and previewing of OpenUSD 3D assets. Developed by a team of 14 students in the Computer Graphics department at the University of Pennsylvania, the platform integrates a custom OpenUSD asset structure with a Django backend, MySQL database, and Amazon S3 cloud storage.

The browser supports:

• Version-controlled asset management with check-in/check-out functionality
• Tag-based search and metadata querying
• Web-based 3D asset preview via a Three.JS viewer, with support for direct integration into digital content creation (DCC) tools such as Houdini

Working alongside my wonderful peers, I focused on two things: personally building an asset resolver infrastructure for the platform and overall project environment, and collaboratively designing the project-wide USD asset structure and schemas.

Motivation

Modern game and animation studios require scalable infrastructure to store, browse, and collaborate on 3D assets. These systems are essential not only for artists to access production-ready content, but also for technical teams to maintain consistency across complex pipelines.

Recognizing this industry need, our team set out to develop a collaborative 3D asset browser that emphasizes:

1. Scalability – supporting growing asset libraries and multi-versioned contributions
2. Modularity – enabling flexible integration across DCC tools and web platforms
3. Interdisciplinary workflows – streamlining collaboration between artists, technical directors, and developers

As students, we also hoped that through combining OpenUSD’s composition model with a modern web backend, PAPAYA serves as both a practical tool and a proof-of-concept for high-efficiency asset management in academic and small-team environments.

Achievements

I focused on core infrastructure to support asset resolution, storage, and interactivity. My primary contributions included:

• Designing and implementing a versioned asset resolver, integrating data flow across MySQL and Amazon S3 to support multi-version asset history
• Co-developing a custom OpenUSD asset structure that leveraged composition arcs for modular layering, material binding, and LOD management
• Prototyping and validating a Three.JS-based web viewer for interactive preview of glTF-converted USD assets

Next Steps

• Explore Assembly-level USD compositions, enabling more complex multi-asset layouts beyond the scope of the initial sprint
• Revisit the idea of a native Three.JS USDZLoader as web-related USD development matures — evaluate performance, material fidelity, and potential integration in-place of current USD->glTF->Three.JS workaround method.
  • Contribute to the three-usdz-loader open source repo. Improve its support for material-binding and geometry “Mesh prim” handling.

Method

Firstly, an unique goal of this project was to simulate the graphics pipeline within a small studio team. We organized work around sprint cycles, beginning with individual MVP proposals and culminating in a shared architecture that balanced backend reliability with frontend usability.

Versioned Asset Resolver

Asset resolution in OpenUSD involves mapping logical asset paths to physical file locations—often across multiple layers, tools, or storage backends. For this project, we needed a resolver that could support:

• Multi-versioned assets with commit history
• Compatibility with MySQL, Amazon S3, and Django-based APIs
• Layer-based composition in USD

The primary bottleneck was the lack of consistent versioning among our different platforms. While commit metadata existed per asset in MySQL, and Amazon S3 has built-in versioning, this info had no communication with each other.

To address this, I worked on optimizing the data format in what appeared to be three coordinated layers:

Though ultimately, I realized that everything within the systems, Django included, were heavily interconnected, so my workflow started to look more like this:

(Get it? Because clang… is clang?)

The following three sections cover the specifics of refactoring each system.

MySQL “Sublayer” Structure

Initially, at our class-wide MVP disccussions, we considered version tracking at either the Asset or Commit level. However, after downloading and looking through example datasets such as Disney’s Moana and Pixar’s da Vinci’s workshop , I realized that tracking version history at the Sublayer level would be necessary, allowing us to track changes in individual files (e.g., a LOD variant or material file) between commits. Thus, the Sublayer table was introduced to the MySQL schema.

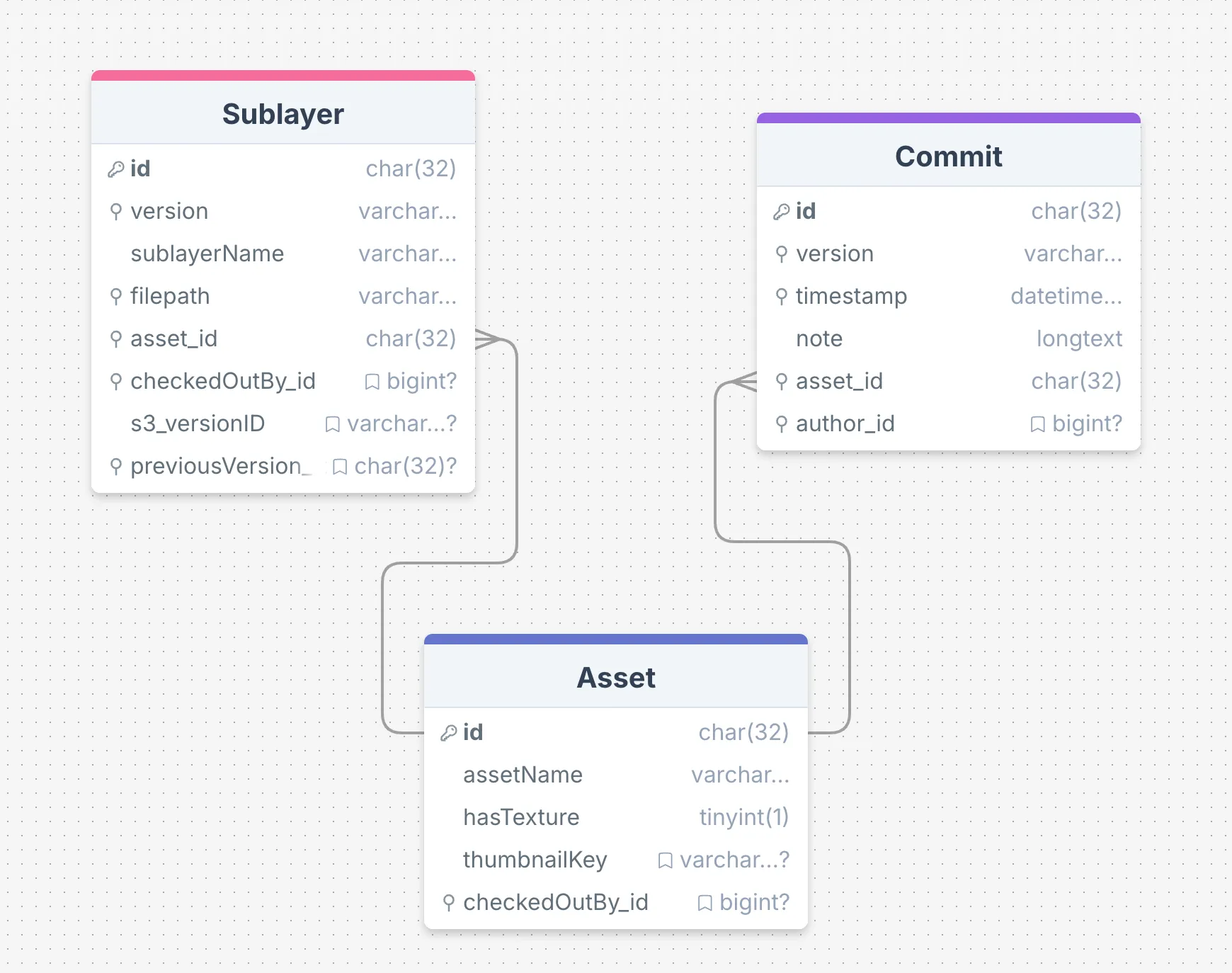

Key columns include:

• s3_versionID: references the corresponding object version in Amazon S3
• previousVersion_id: links to the prior version of the same sublayer

To integrate this logic into the development pipeline, I extended our Django models and created reusable Django custom admin commands for database maintenance. These tools allowed contributors to standardize version syntax and patch historical inconsistencies while maintaining reproducibility across environments.

1
class Command(BaseCommand):
2
  help = """Easily refactor Commit objects in database."""
3

4
  def handle(self, *args, **options):
5
    if click.confirm(f"Fixing timestamp-related commit history. Continue?"):
6
      self.fixCommitTimestamps()
7
    if click.confirm('Refactoring 1.x commit versions to 0x.00.00 versions. Continue?'):
8
      self.standardizeCommitVersionSyntax()
9
  ...

Refactoring Amazon S3 and Code Collabs

To complement the versioning system in MySQL, we leveraged Amazon S3’s native object versioning to manage file-level history for all USD sublayers. The structure of our S3 bucket mirrored the organization of our USD assets, preserving their directory layout and enabling direct mapping between local files and cloud objects.

As assets were uploaded to S3, their corresponding versionId values were extracted and stored in the MySQL Sublayer table. This allowed the backend to reference a specific state of any file, ensuring consistency between database metadata and actual stored content.

1
$ aws s3 ls s3://cis-7000-usd-assets/ --recursive | grep "Total"
2

3
Total Objects: 817
4
   Total Size: 273902365

In building this segment of the resolver pipeline, I collaborated closely with teammates who developed the core S3 interface in the backend. Their implementation of a centralized S3Manager class provided a clean abstraction over AWS SDK calls and significantly improved maintainability:

This wrapper pattern reinforced the importance of modular backend design. It also allowed me to streamline resolver logic and maintain a consistent interface between asset metadata and its physical representation in storage.

Through this collaborative effort, we achieved versioning across MySQL and S3 while improving clarity and extensibility in the codebase.

Checkin/Checkout Views in Django

Next, to support collaborative editing and version control, I working on the check-in / check-out system within our Django backend. We made sure that our database enforces edit locks at the asset level, ensuring safe concurrent use among team members and maintaining traceable asset histories.

Access Control Logic

Specifically, the workflow enforces a single-user ownership model during check-out:

• When a user checks out an asset, the checked_out_by field in MySQL is updated with their identifier
• While other users can still download the asset, further check-out attempts are blocked until it is checked back in This policy safeguards against overwriting and promotes structured review and integration

Endpoint Development

I helped to develop and maintain key API endpoints to support this workflow:

• post_asset() and put_asset() in library/views_upload.py

  • post_asset() initializes asset metadata and uploads new files
  • put_asset() validates check-in logic and updates existing entries

• download_asset_by_commit() and download_asset_by_tag() in library/views_download.py

  • Enables precise retrieval of asset versions based on a “flags” system in the metadata.

I also wanted to structure each view around a corresponding serializer in library/serializers.py, ensuring:

• Input validation and error handling
• Clean model transformations
• Reusability and testability of endpoint logic

Developer-Facing Documentation

To wrap things up in Django, I integrated Swagger/OpenAPI documentation into the backend to ensure smooth adoption by our large, multidisciplinary team.

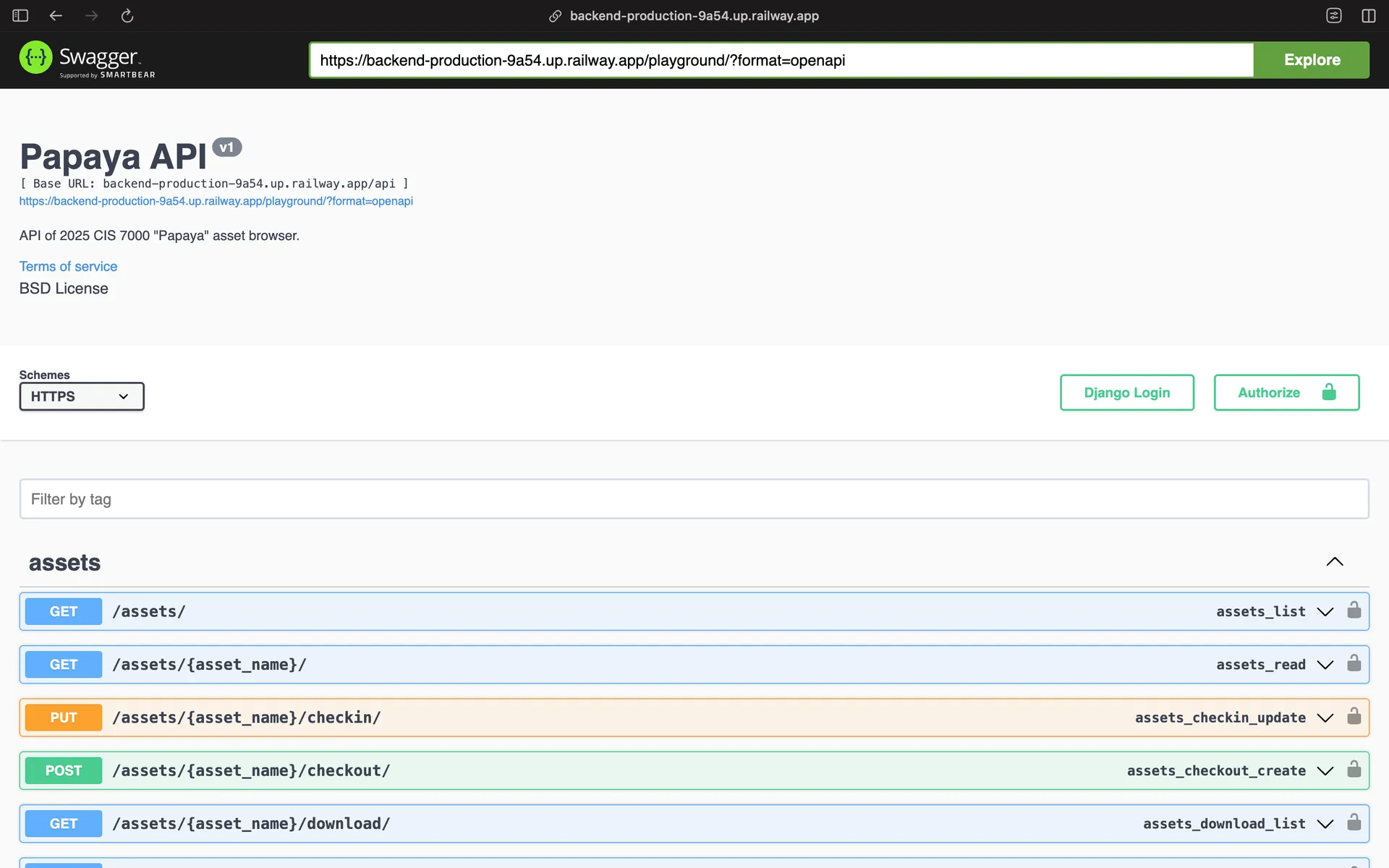

• /docs – Auto-generated reference of all endpoints, expected schemas, and return types
• /playground – Interactive API testing interface directly in the browser

Although I’ve interacted Swagger in the past, it’s always been extremely downstream in the pipeline, such as a third-party hobbyist developer. Setting it up in this project, I realized such documentation tools are extremely necessary in team workflows. As we were all working simultaneously on our own rigorous features, often times one person’s progress sidestepped or completely interfered with another’s. Some examples of how Swagger instantly improved our efficiency as a collective are:

• Improved: Those working on DCC (digital content creation) integration could refer to /docs to match finicky shelf tool programming to PUT schemas.
  • Past: DCC team must first track down whoever is responsible for a certain endpoint in the backend to ask specifics about the route. Furthermore, having such different tasks at hand, core developers and DCC developers had trouble understanding bug descriptions or platform-specific vocabulary.
• Improved: The frontend team leveraged /playground to test response formats and preview integration behavior.
  • Past: Frontend team must keep both backend and frontend servers running developer builds simultaneously, often with complex, hard-coded network connections between them.

By combining clear access logic with modular API design and strong developer support, the check-in / check-out system became a reliable component for team-wide collaboration.

Custom USD Structure

On the USD front, to support our pipeline, we developed a custom USD asset structure organized around the idea of contrib-based module layers. We personally found it very satisfying that this structure innately reflected the way our team worked: different members could contribute schemas for geometry, material, tags, dependencies, and virtually anything and everything, over time, and our directory layout would instantly support that new flow.

In our design process, we made sure to take inspiration from established practices — i.e. NVIDIA’s da Vinci’s Workshop dataset, which also uses a contrib/ pattern to separate layers by functionality. Discovering that reference helped reinforce our decision to structure our assets this way.

Directory Layout

Assets were organized under a top-level Assets/ directory, with each asset containing a root .usda file and a contrib/ subfolder for structured layers:

1
Assets/
2
└── assetName/
3
  ├── assetName.usda # Root layer to reference contribs
4
  └── contrib/
5
    ├── geometry/
6
    │   ├── geometry.usda
7
    │   ├── bbox/
8
    │   │   └── geometry_bbox.usda
9
    │   ├── LOD0/
10
    │   │   └── geometry_LOD0.usda
11
    │   ├── LOD1/
12
    │   │   └── geometry_LOD1.usda
13
    │   └── LOD2/
14
    │       └── geometry_LOD2.usda
15
    └── material/
16
      ├── material.usda
17
      ├── default/
18
      │   ├── material_default.usda
19
      │   └── texture/
20
      │       └── default.png
21
      ├── plastic/
22
      │   ├── material_plastic.usda
23
      │   └── texture/
24
      │       └── plastic.png
25
      └── metal/
26
        ├── material_metal.usda
27
        └── texture/
28
          └── metal.png

Each asset’s root .usda file served as a single central entry point that composited together all following contributions. From this root, references unfolded layer by layer — starting with top-level geometry and material references, then expanding into deeper sublayers like LOD variants or per-material texture maps. This hierarchical unfolding made each asset easily discernible at a glance, while still allowing contributors to work at fine-grained levels without touching the root.

Composition Arcs

We used core USD composition arcs to define asset behavior. Briefly:

• reference arcs connected the root layer to subsequent layers
• variantset arcs were applied within each contrib, such as LOD switching within the geometry contrib.
• payload arcs greatly optimized performance. For example LOD0, which often exceeded 80mb size, was on default hidden by a payload.
• class and inherits: each material that an asset needed was assigned its own class within a MaterialClasses Scope that could be accessed throughout the entire stage. This effectively allowed the usage of a simple inherits keyword to bind a geometry prim to a desired material.

For example using a “campfire” USD asset, we would define a MaterialClasses Scope containing class_ prims for Rocks and Logs, allowing assets to bind materials via inheritance:

1
def Scope "MaterialClasses"
2
  {
3
    over "class_Default"
4
    {
5
      prepend rel material:binding = </campfire/Materials/mat_Default>
6
    }
7
    over "class_Rocks"
8
    {
9
      prepend rel material:binding = </campfire/Materials/mat_Rocks>
10
    }
11
    over "class_Logs"
12
    {
13
      prepend rel material:binding = </campfire/Materials/mat_Logs>
14
    }
15
  }

This promoted reuse and ensured materials could be consistently referenced across assets without duplication.

Assemblies, DCCs & Extensibility

The root directory also included:

1
└── Assemblies/
2
└── Assets/
3
└── DCCs/

While Assets/ housed individual models, Assemblies/ was reserved for larger scene / shot compositions, and DCCs/ for integration scripts or source workspace files. These directories were again very satisfying in our design process, achieving an “Inception”-like additional layer in our database.

Documentation & Workflows

To assist all project contributors in adopting this structure, I took some type to develop some supporting materials:

• A demo video in USDView walking through an example asset, demonstrating how to switch through different geometry variants, and view the inherited material binding for a given geometry prim.

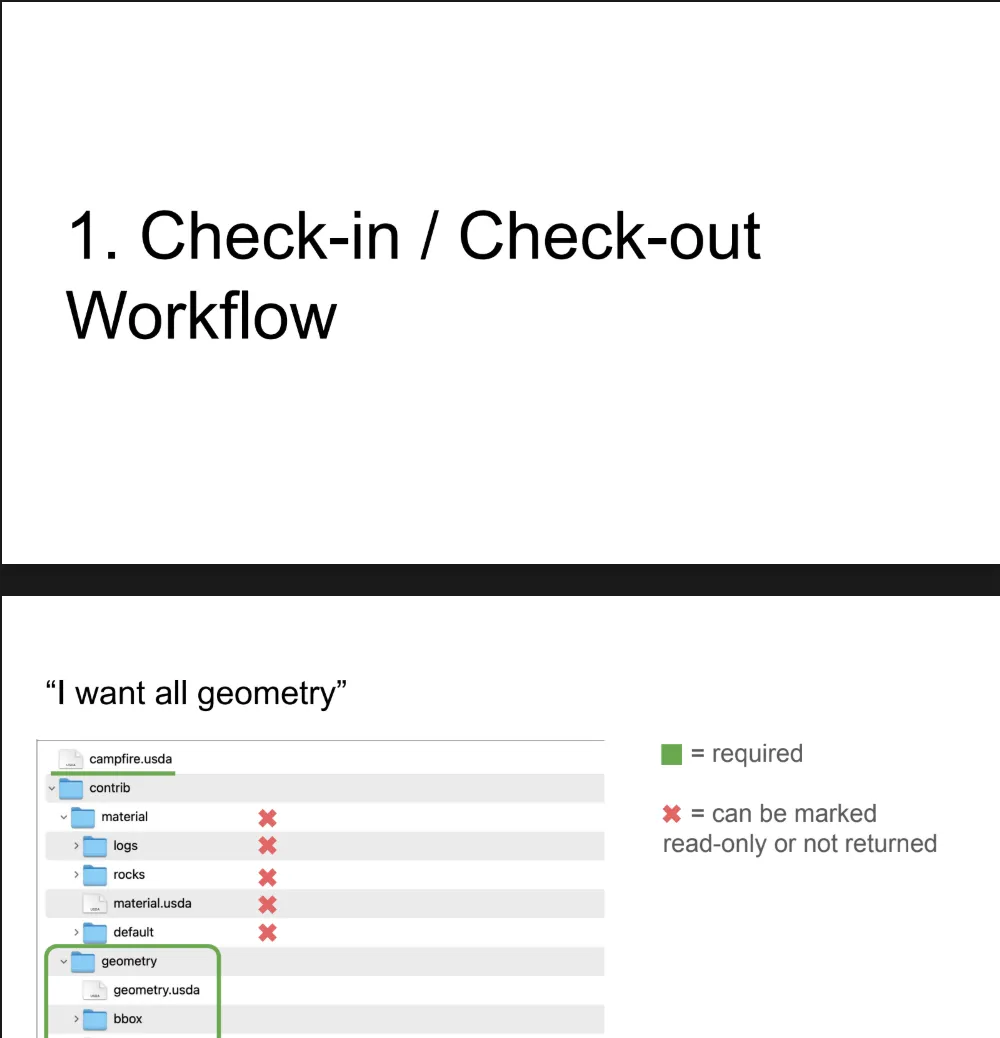

• A visual workflow presentation outlining what is possible with this structure. Namely, walks through a “check-in/check-out” workflow, and details the thought process of a potential geometry artist as well as a material artist.

• A GitHub reference repo containing dummy assets, layer templates, example Python scripting routes, and an extensive README tailored towards my fellow contributors.

Three.JS Web Viewer

To enable real-time asset inspection directly in the browser, during my initial MVP prototype phase I developed a Three.JS-based viewer for glTF-converted USD files.

Note: I only worked on the prototype, and the nifty previewing feature in the final deployed browser is all thanks to my incredible teammates. See Here: Live asset preview – Jello Shelf

However, to briefly touch on the things I learned about USD on the web during that initial sprint, I used Three.JS’s GLTFLoader and a Python script within the Django runtime that converts USD files to .gltf format using Blender scripts if it does not already exist, is what allowed for rendering of USD on the web. This decision was made after evaluating other options such as USDZ and three-usdz-loader, opting for this workflow with more consistent material and geometry handling.

At that time, our MVP used both a Django-based backend and frontend. So to support the viewer feature, I also experimented with:

• Webpack-based bundling for static assets
• Integration of JavaScript modules into Django templates
• Static file routing and serving for frontend deployment

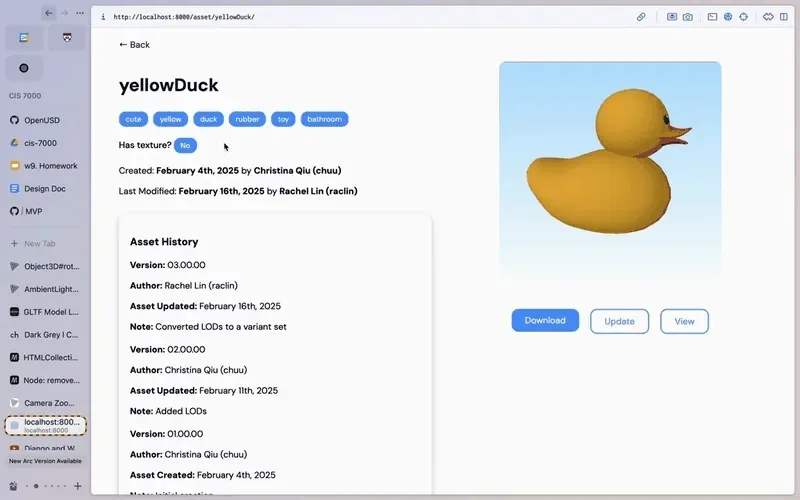

My MVP looked like so:

Again, the final browser features a much more robust Three.JS viewer integrated by the frontend team, with environmental lighting, multiple shading models (e.g., PBR, Toon), and other UI controls, like so:

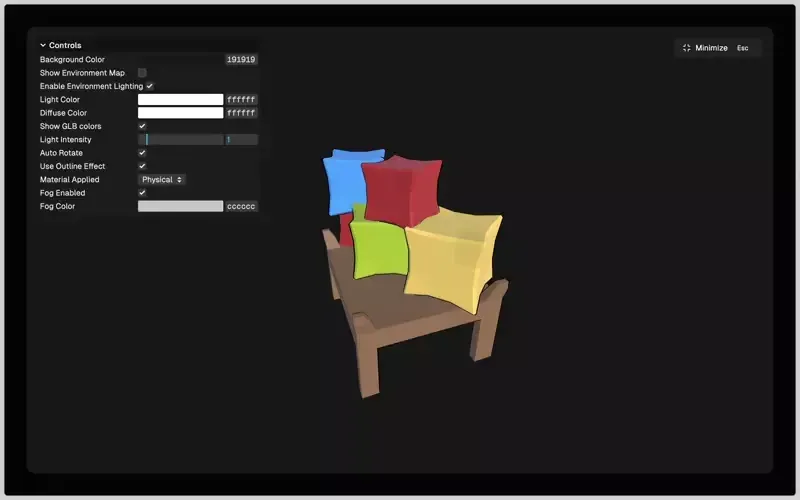

Navigate to Live asset preview – Jello Shelf and press “Preview model in browser” to test out their cool feature in action.
